Python and RSI Trading Strategy (Backtest, Trading Rules, Code, Setup)

ByOddmund Groette Python Trading Strategies

Python is the most popular programming language to backtest trading strategies. However, most people are afraid of it or don’t know where to start, while others think it’s difficult to learn.

Today we will show you how to backtest an RSI trading strategy with a few lines of code, step by step, for beginners. As you will see, you don’t need to have a computer science degree to do it! Also, if you want profitable investment strategies, you might want to check out that clickable link. We have hundreds of strategies with specific trading rules and backtests.

Key Takeaways

  • Python enables easy trading strategy backtesting
  • Yahoo Finance data accessed via yfinance library
  • RSI indicator can be computed using pandas_ta
  • RSI signals identify overbought and oversold conditions
  • Buy when RSI(2) drops below ten
  • Sell when RSI(2) rises above sixty
  • Loop-based logic generates trading entry signals
  • Cumulative returns visualize strategy performance over time

In this article, we will learn how to download historical stock data from Yahoo Finance, calculate the RSI indicator, generate trading signals, and plot the returns of the strategy, all using Python.

An educational strategy infographic titled "RSI Trading Strategy," detailed with minimalist style-icons and four connected directional arrows explaining what the Relative Strength Index is, calculating its core multi-period formula, and stating specific rule-based conditions for overbought and oversold market signals.
Quantitative overview infographic breaking down the technical definition, mathematical formulas, and traditional oscillator boundaries behind a standard RSI-based setup.

Download historical data using Python

yfinance allows us to download historical data from Yahoo Finance for free and also includes fundamental data such as income statements, trading multiples, and dividends, among many others.

We are going to create a Python notebook to run our code. A Python notebook is a web-based environment to create and edit Python scripts (for example, Jupyter notebook or Google Colaboratory). They are easier to use and understand than other Python programs to write and run our code.

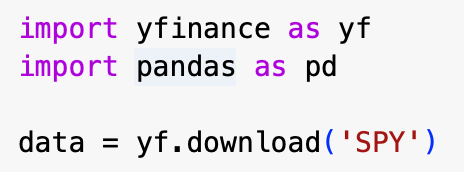

In our Python notebook, we are going to first import the yfinance library as well as the pandas library, which will allow us to manipulate the data frame later. Then we define a variable, which we named data, and download the dataframe of the historical prices of the SPY using a yfinance function called yf.download().

A small snippet of Python code on a light background showing three lines of script: importing the yfinance library as yf, importing the pandas library as pd, and calling the yf.download function with the ticker symbol SPY in single quotes to retrieve historical market data.
Python script code snippet demonstrating how to import required financial libraries and download historical index tracking data for programmatic strategy modeling.

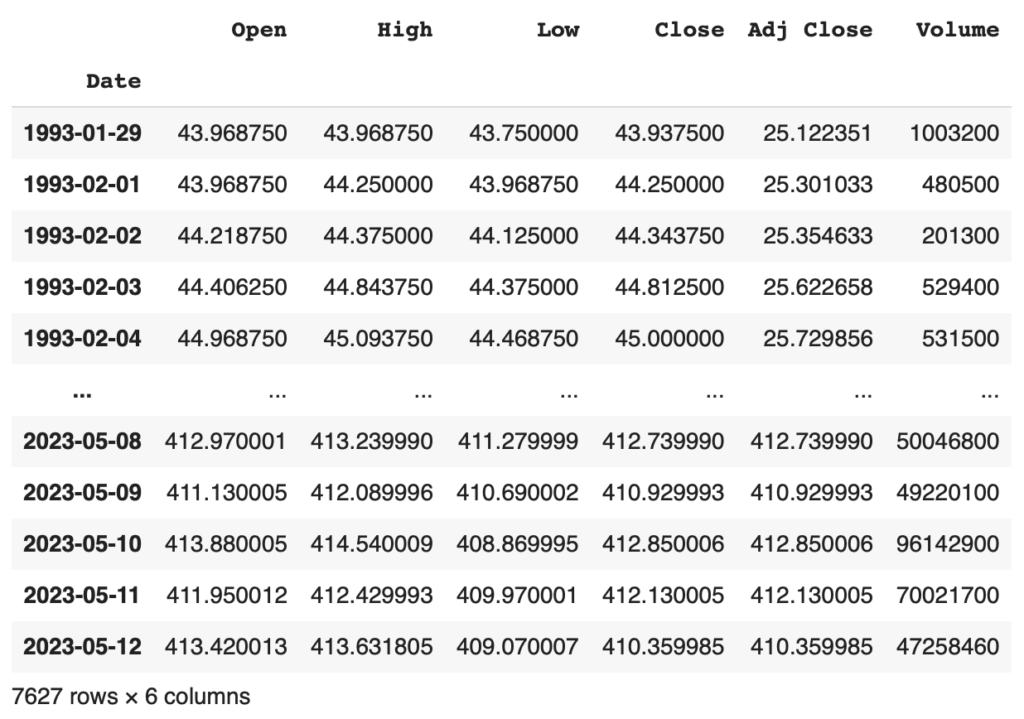

If we print the data, here is the output:

A formatted Python Pandas DataFrame console output displaying fetched historical financial data in a table with columns for Open, High, Low, Close, Adjusted Close, and Volume, spanning from early 1993 rows down to mid-2023 rows.
Pandas DataFrame terminal output displaying structural historical market pricing data fetched for quantitative strategy backtesting.

Now we have the daily open, high, low, close, adjusted close, and volume values for the SPY since 1993!

Calculating the RSI indicator

The formula to calculate the relative strength index is not difficult, but there is a library in Python that can do it for us. Pandas_ta is an easy-to-use library that leverages the Pandas package with hundreds of technical indicators – all for free.

As we did before with yfinance and pandas, we need to import pandas_ta into our notebook. The function to calculate the RSI is called pta.rsi(). Inside the parenthesis goes two inputs: the daily closing price of the SPY and the length of the RSI we want, in this case, two days.

So to our data frame named data, we are going to add a new column called ’rsi’ and use the formula mentioned above to calculate the RSI.

Calculating the RSI indicator using Python

RSI trading rules

The trading rules of the strategy are pretty simple:

Trading Rules

You find the trading rules at the bottom of the article

Generating the RSI trading signals

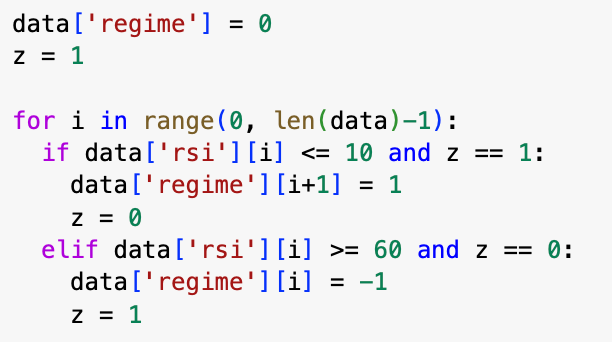

In order to generate the trading signals, we are going to have to do a loop through the data frame using the for function and checking for conditions with the if function.

This strategy has two different signals, one for buying and the other for selling. This means that we are going to scan every row in the data frame one by one (for function), checking for two conditions in each signal (if function):

  • For the buy signal, the RSI must be below ten and z equal to 1 (see z described below)
  • For the sell signal, RSI must be above 60 and z be equal to 0

We created another column in the data frame called regime and put one if the buy signal is triggered and -1 when the sell signal is flashed.

A Python code snippet displaying a for loop designed to generate automated trading signals based on Relative Strength Index boundaries. The logic utilizes an entry condition for RSI values less than or equal to 10 and an exit or short condition for RSI values greater than or equal to 60, managing execution states via a variable z flag.
Python programmatic loop architecture designed to evaluate historical RSI thresholds and dynamically assign position states to a strategy dataframe.

What is z? z is a variable we set equal to 1, so if, for example, there are two consecutive days where the RSI(2) is below 10, the signal is only generated on the first day because after that, z value changes to 0. The two conditions are no longer met. The same goes for the sell signal.

It is also important to note that we put 1 in the following row(i+1) where the buy signal is generated because if the signal is triggered at the close of the day, meaning that we didn’t gain or lose any money that day. If we weren’t to put i+1 we would consider the return of the SPY the day we bought it, even though we bought it at the close.

Now, to make it easier to calculate the returns, we are going to fill with 1’s the regime columns between where the buy signals are generated and when the sell signals are triggered (before this, the value in these rows was 0).

In other words, if the previous row equals 1, put a 1 in the current column. Eventually, we will reach a point where the previous column is -1, and the condition is no longer met.

RSI indicator strategy using Python

Now here is an example of how the data frame would look when a buy and sell signal is triggered:

RSI trading strategy backtest using Python

Calculating, backtesting, and plotting the returns of the strategy

Finally, to calculate the returns and performance of the strategy, we need to make one final loop through the data frame (we promise it is the last!).

Before that, we are going to create a new column called change, where we are going to calculate the daily change of the SPY. In order to do this, we will use the pct_change() function and sum 1 in the end.

Then we will create another column called returns where if the value of the regime does not equal zero, we put the daily change of the SPY, if not, we put just 1.

Calculating and plotting the returns of RSI strategy in Python

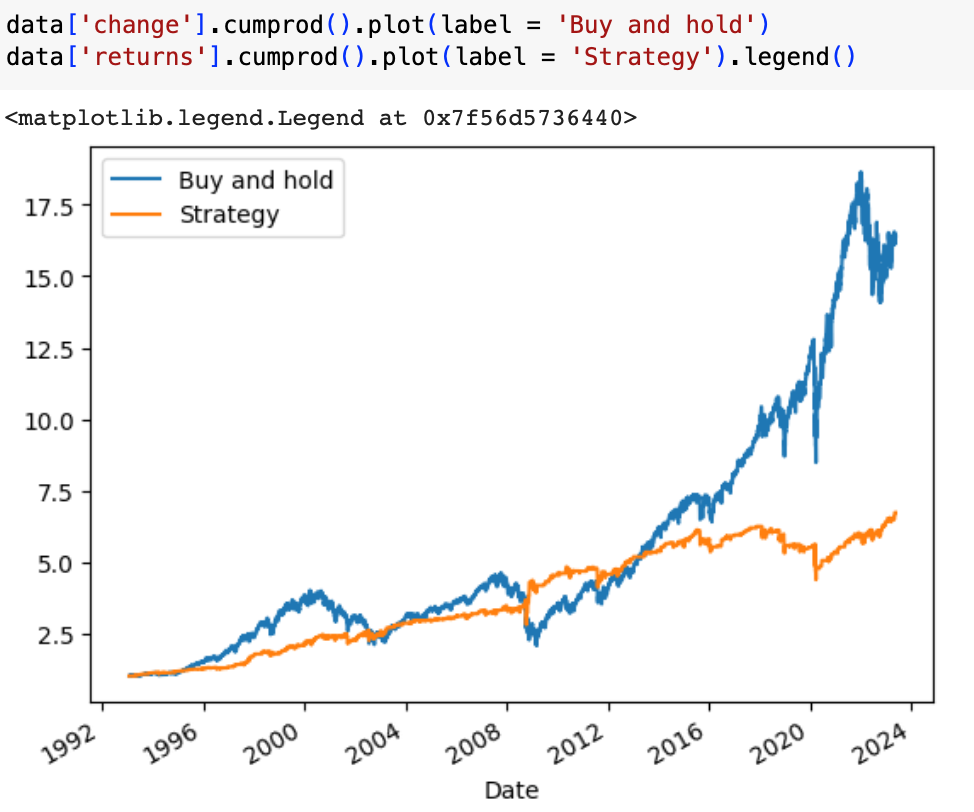

To plot the cumulative returns of the strategy, we will use the cumprod() function followed by the .plot() function to make a graph showing the compounded returns. Inside the parentheses, we add a label to differentiate the market returns from the strategy returns.

A line chart plotted using Matplotlib comparing the performance returns of two strategies from 1993 to late 2023. The blue line tracks a volatile "Buy and hold" benchmark climbing to a terminal level near 16.5, while the orange line maps a smoother, low-drawdown custom quantitative "Strategy" ending at approximately 6.8, shown above two lines of Python code executing .cumprod().plot().
Matplotlib visualization output mapping the long-term cumulative returns of a custom algorithmic strategy against a traditional buy-and-hold index benchmark from 1993 through 2023.

And that’s it! You just backtested a trading strategy using Python.

3 RSI trading strategies video

Related reading:
Python and Trend Following Trading Strategy
Get Started With Python Making Trading Strategies
Python and Momentum Trading Strategy

Creating and backtesting a RSI trading strategy using Python – conclusion

To sum up, today we backtested an RSI trading strategy from scratch. You learned some basic Python code and hopefully found out how easy it is to use Python to backtest trading strategies.
